Gear Boxes

S.S. White manufactures five different types of gear boxes:

Straight-thru, 90 Degree, Off-Set, Single-Output, and Dual-Output. All are made with aluminum alloy housing.

A. Ratio Drives - Light Duty Gear Boxes

Location

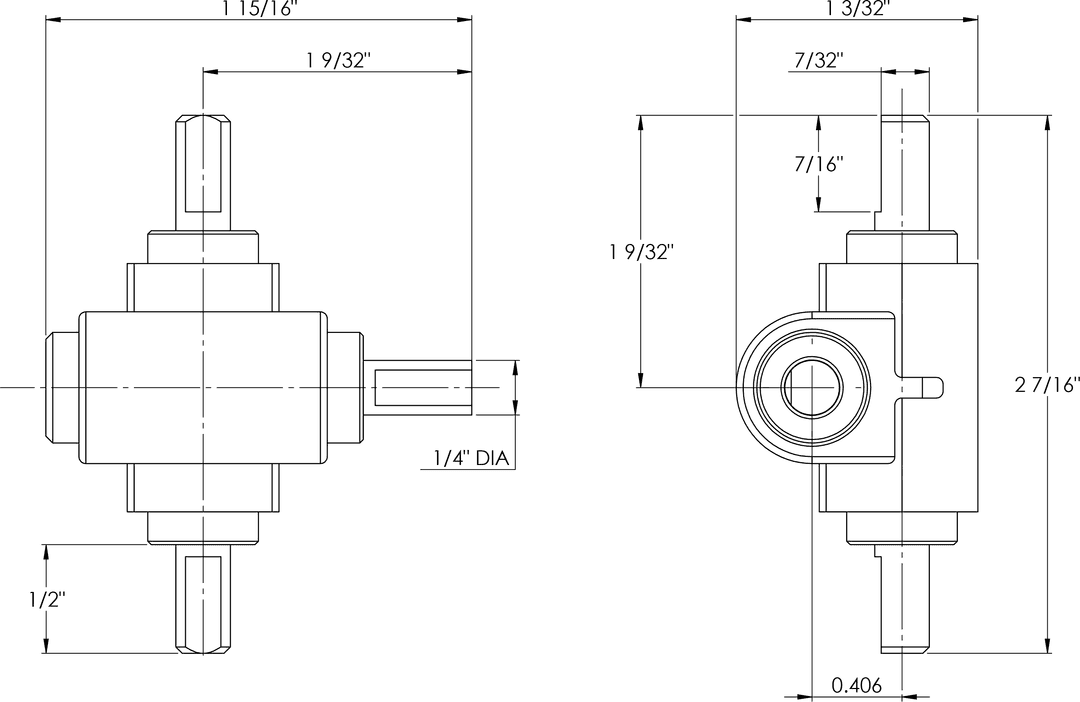

Dual Drives | FG118Z

Specifications

  • Weight: 3 1/2 oz. approximate
  • Material: Aluminum Alloy Housing, Steel Gears and Shafts, Oilite Bearing
  • Ultimate Static Torque Capacity: 25 lb, inches
  • Minimum Torque Capacity: 20 lb, inches
  • Dynamic Torque Capacity: 3 lb, inches
  • Back Lash: 6° Nominal
  • Gear Ratio: 1:1, others available
Location

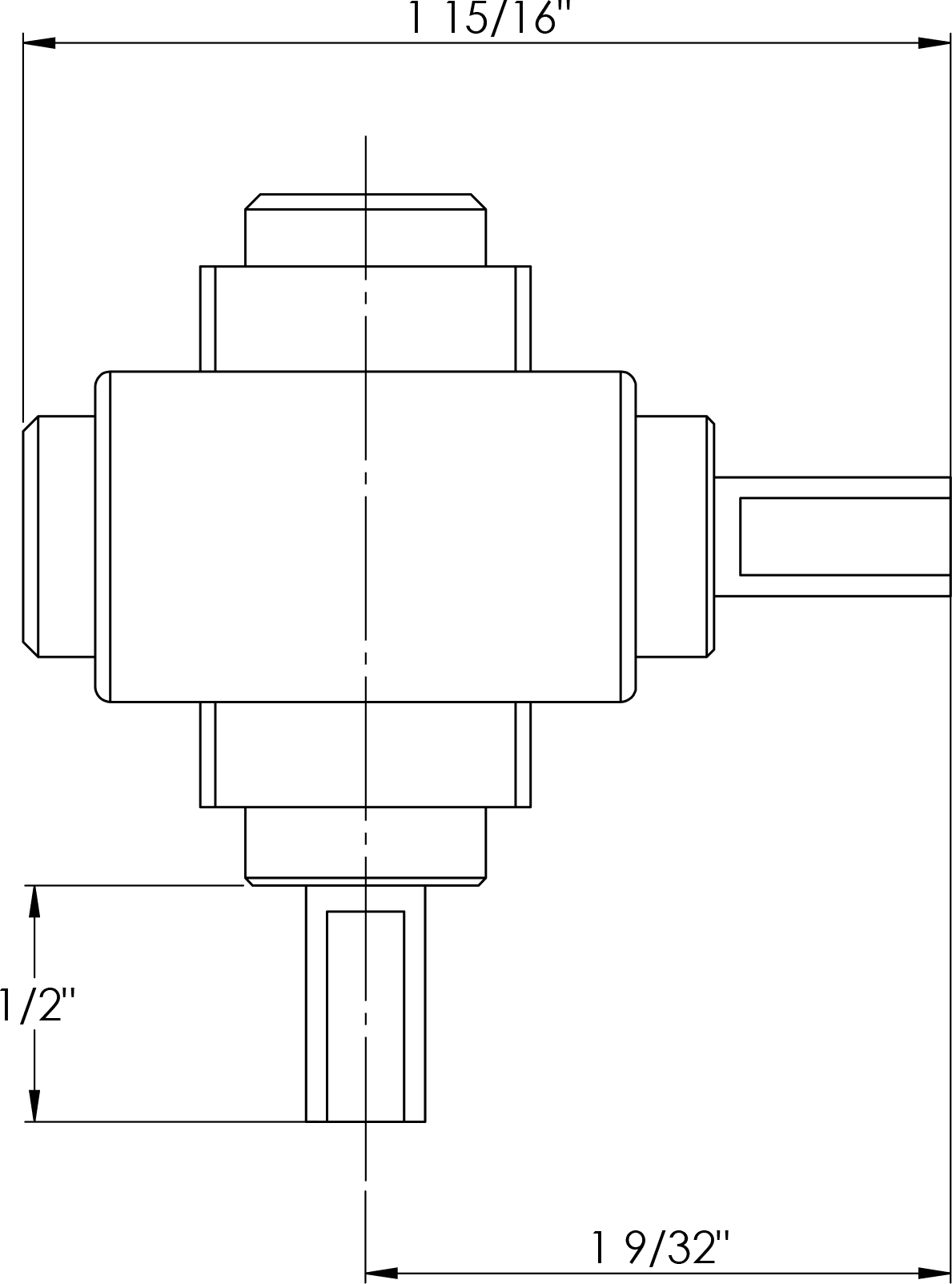

Right Angle | FG118V

Specifications

  • Weight: 3 1/2 oz. approximate
  • Material: Aluminum Alloy Housing, Steel Gears and Shafts, Oilite Bearing
  • Ultimate Static Torque Capacity: 25 lb, inches
  • Minimum Torque Capacity: 20 lb, inches
  • Dynamic Torque Capacity: 3 lb, inches
  • Back Lash: 6° Nominal
  • Gear Ratio: 1:1, others available
Location

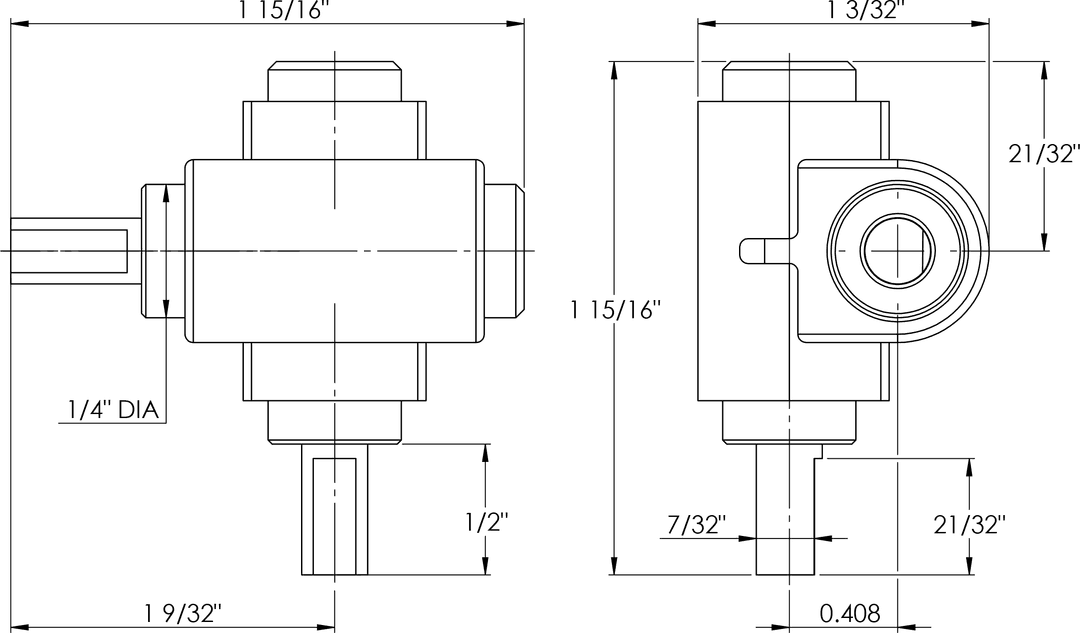

Output Opposite Input | FG118Y
Location

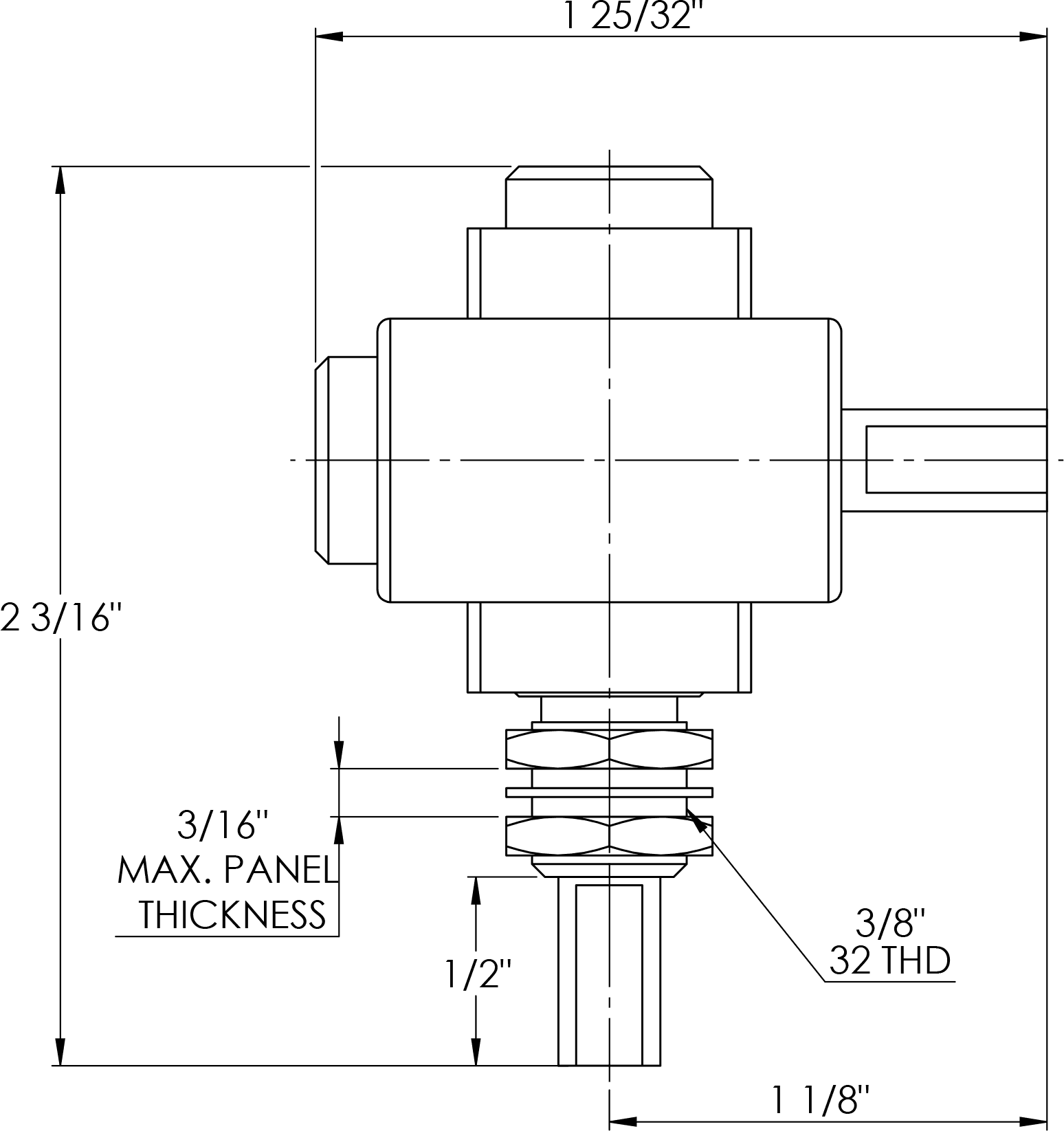

Panel Mount | FG118W

Specifications

  • Weight: 3 1/2 oz. approximate
  • Material: Aluminum Alloy Housing, Steel Gears and Shafts, Oilite Bearing
  • Ultimate Static Torque Capacity: 25 lb, inches
  • Minimum Torque Capacity: 20 lb, inches
  • Dynamic Torque Capacity: 3 lb, inches
  • Back Lash: 6° Nominal
  • Gear Ratio: 1:1, others available

B. Ratio Drives - Heavy Duty Gear Boxes

Location

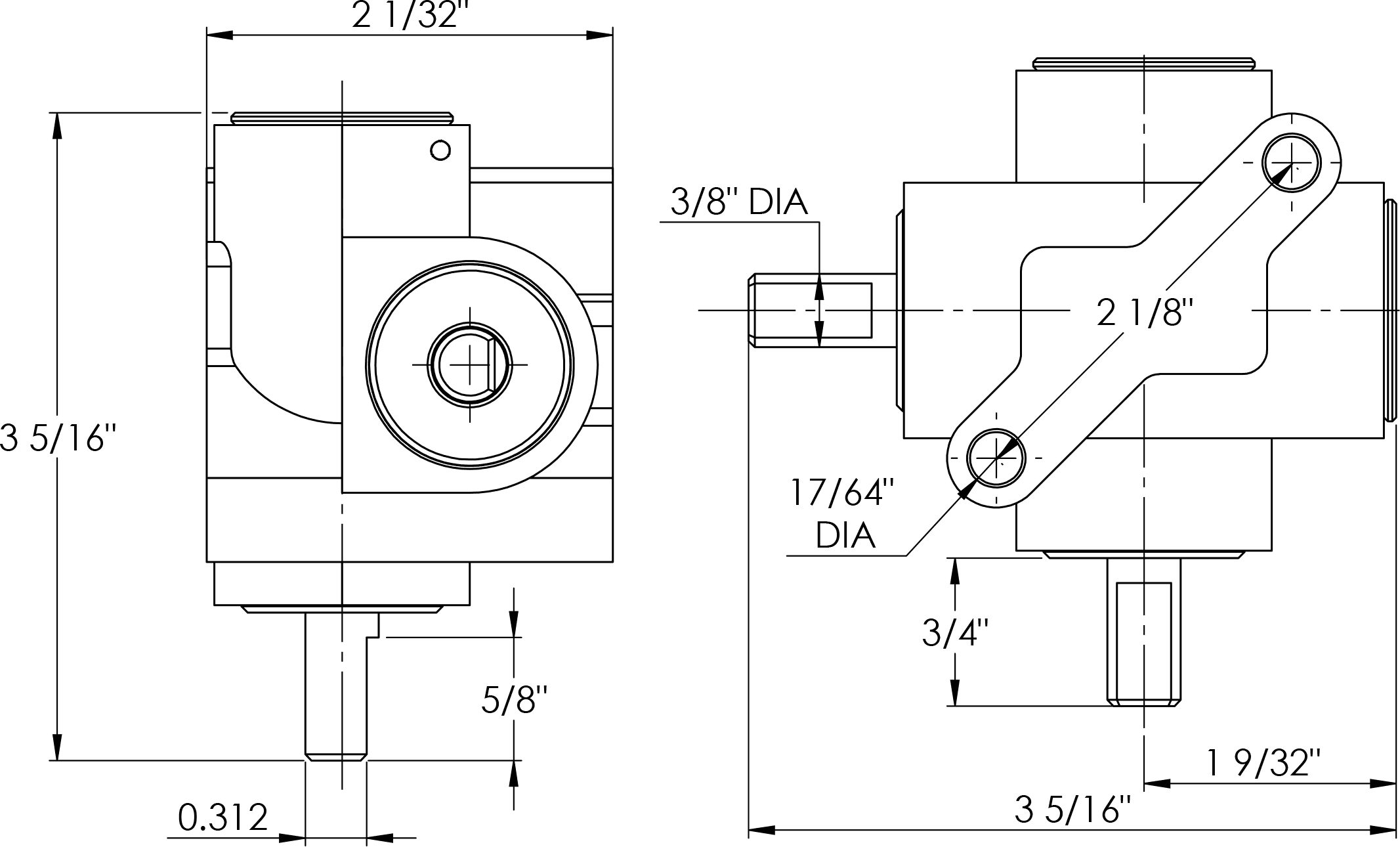

FG116R
Location

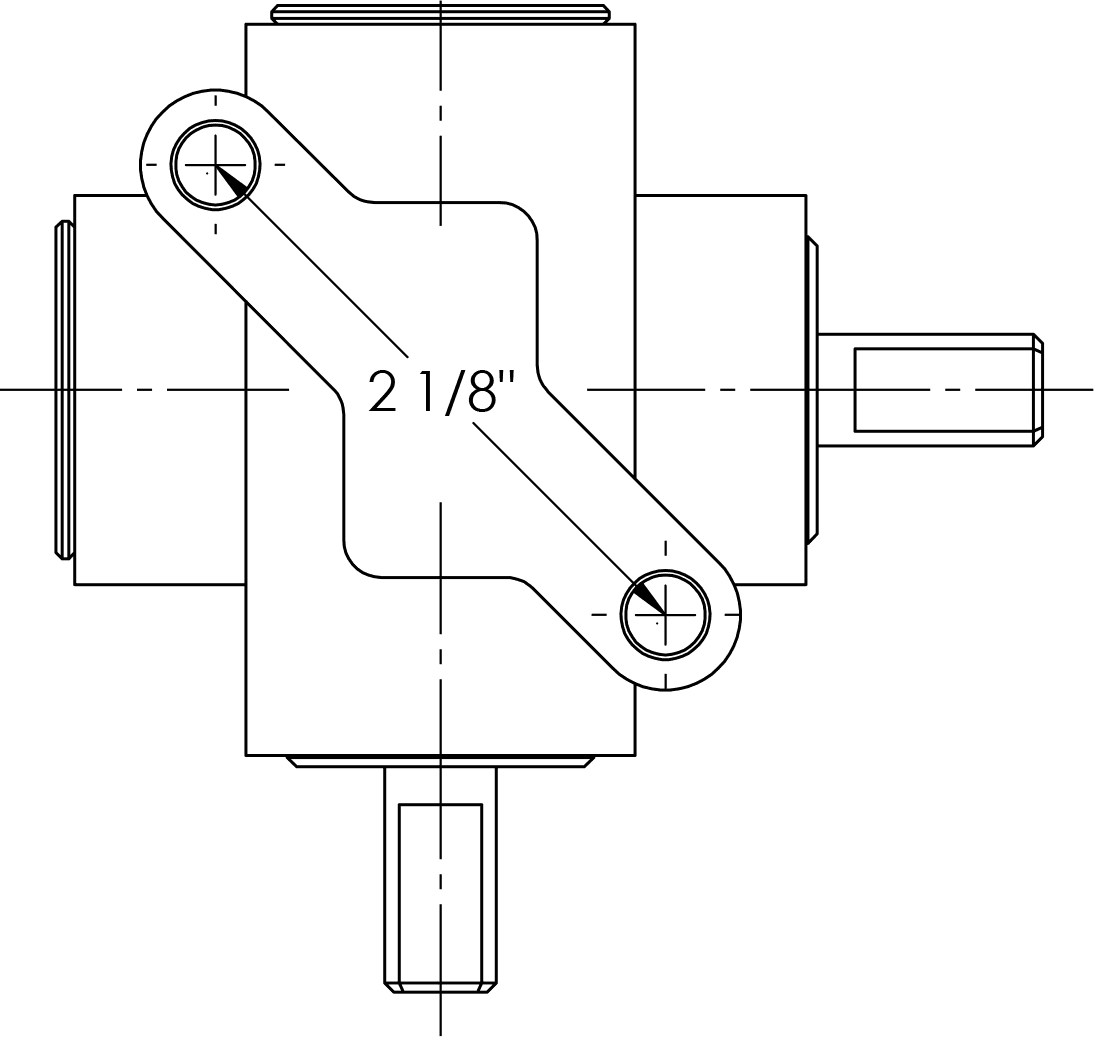

FG116Z

Specifications

  • Weight: 1.3 lbs oz. approximate
  • Material: Aluminum Alloy Housing, Alloy Steel Gears, Shielded Ball Bearings, Steel Shafts
  • Ultimate Static Torque Capacity: 150 lb, inches
  • Manual Torque Capacity: 75 lb, inches
  • Dynamic Torque Capacity: 15 lb, inches
  • Back Lash: 3o Nominal
  • Gear Ratio: 1:1
Location

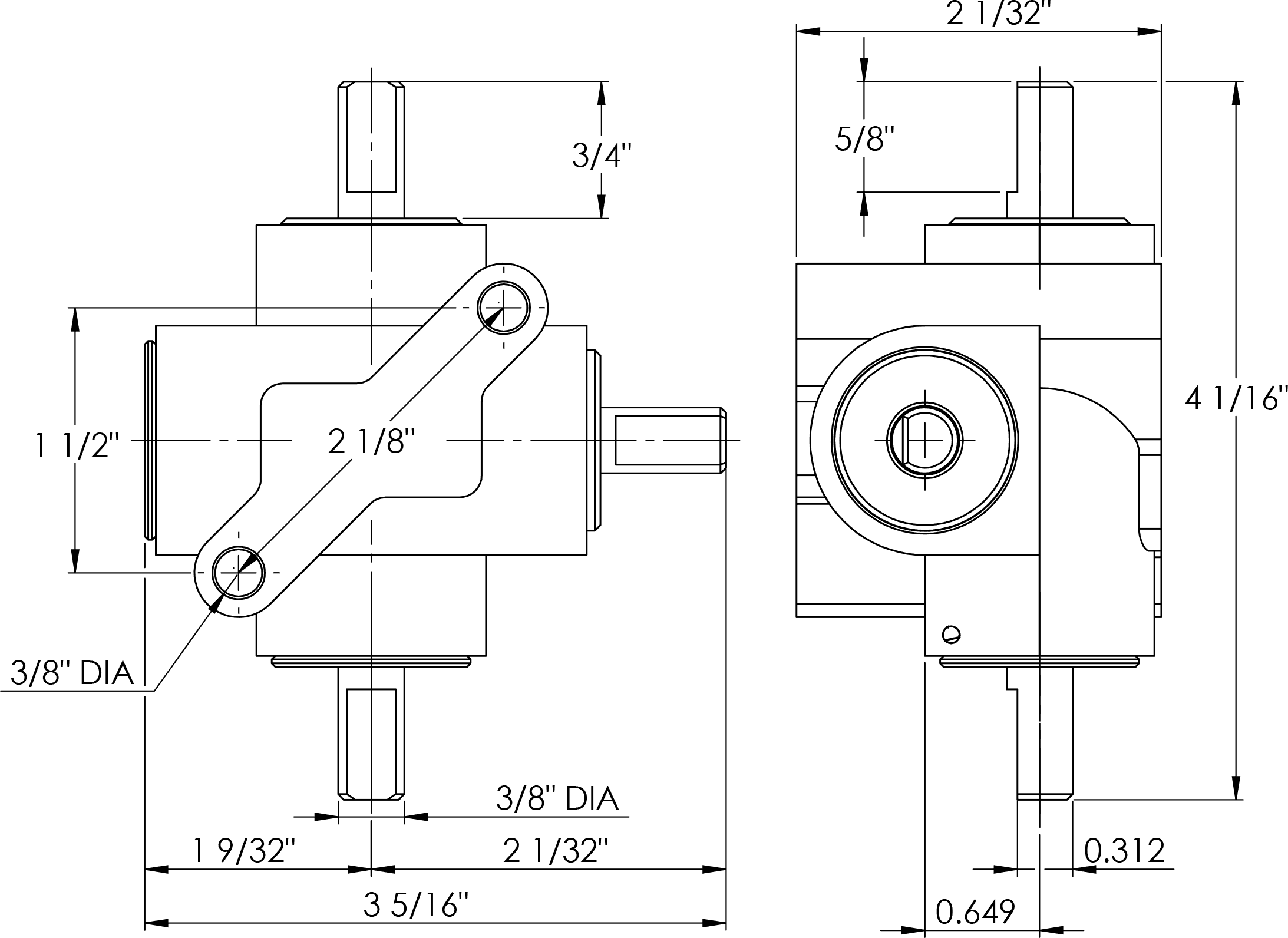

FG116X
Location

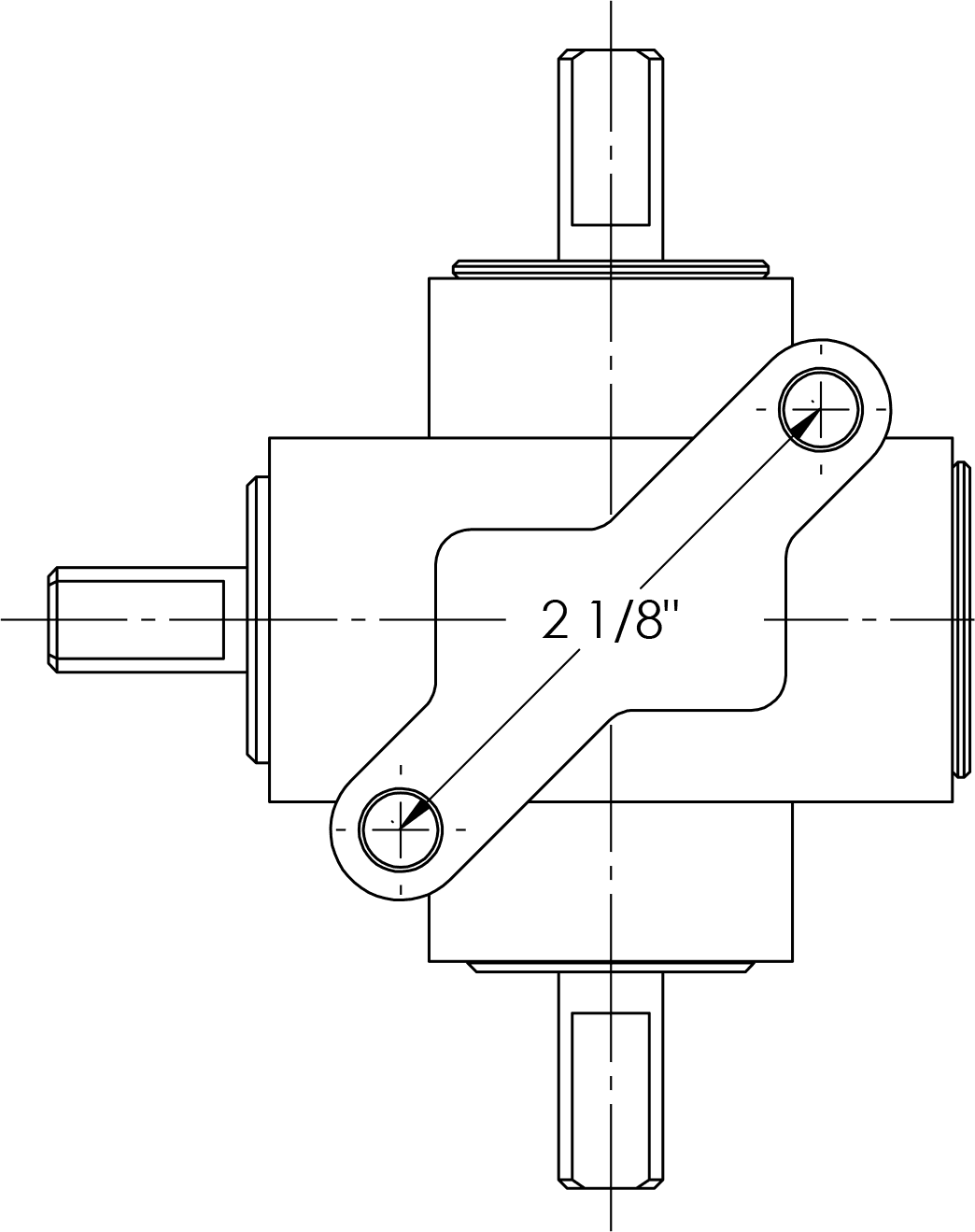

FG116T

Specifications

  • Weight: 1.3 lbs oz. approximate
  • Material: Aluminum Alloy Housing, Black Anodized Finish, Steel Gears, Steel Ball Bearings
  • Ultimate Static Torque Capacity: 150 lb, inches
  • Manual Torque Capacity: 75 lb, inches
  • Dynamic Torque Capacity:15 lb, inches
  • Back Lash: 3o Nominal
  • Gear Ratio: 1:1
